树莓派pico 2+OLED显示

树莓派 Pico2 驱动OLED 显示屏。

一、硬件

使用i2c端口0，SDA是GP15，SCL是GP14。将pico的引脚与oled屏对应引脚相连。

Pico引脚	OLED引脚
15 (SDA)	SDA
14 (SCL)	SCL
3V3 (OUT)	VCC
GND	GND

二、软件操作界面：

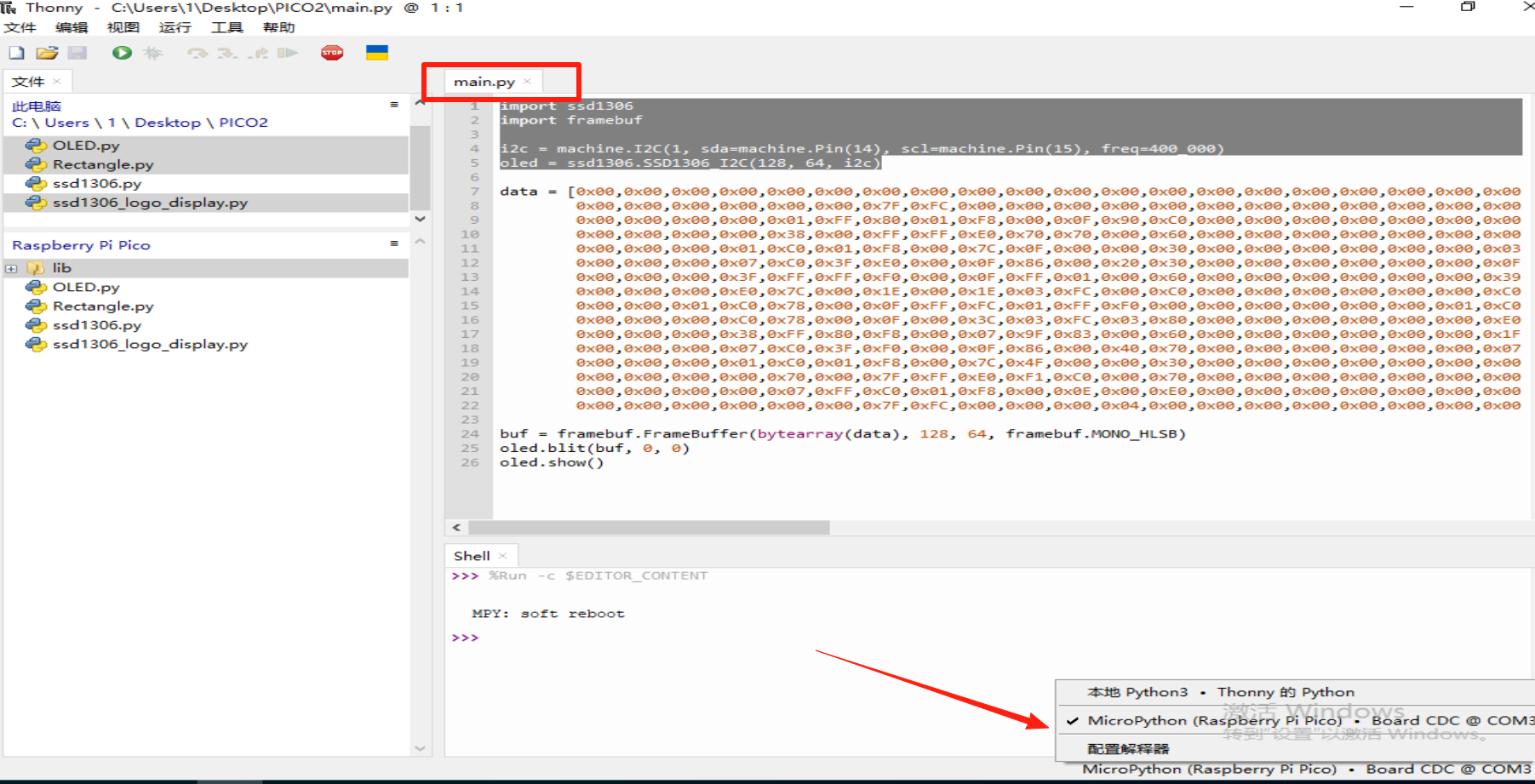

这里主要是使用的是THONNY软件，把板子接入到电脑后，在右下角可以看到一个CMO3的端口，显示PI PICO，勾选它就可以把写好的代码上传到开发板中。

三、代码：

显示树莓派标志代码

import ssd1306
import framebuf

i2c = machine.I2C(1, sda=machine.Pin(14), scl=machine.Pin(15), freq=400_000)
oled = ssd1306.SSD1306_I2C(128, 64, i2c)

data = [0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x3E,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x07,0x00,0x00,0x00,0x7F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x80,0x03,0x80,0x00,0x01,0xF7,0xC0,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x01,0xFF,0x80,0x01,0xF8,0x00,0x0F,0x90,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xE0,0x01,0xFF,0x00,0x0E,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x01,0xF8,0x01,0xFF,0xC0,0x3C,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x00,0xFF,0xFF,0xE1,0xE0,0x70,0x00,0x60,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x38,0x00,0xFF,0xFF,0xE0,0x70,0x70,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x00,0xFF,0xFF,0xF0,0x39,0xC0,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xFF,0xDF,0xF0,0x1D,0xC0,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x01,0xFE,0x01,0xF8,0x0F,0x80,0x00,0x30,0x00,0x00,0x00,
        0x00,0x00,0x00,0x01,0xC0,0x01,0xF8,0x00,0x7C,0x0F,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x03,0xF8,0x00,0x3E,0x0F,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x07,0xF0,0x00,0x1F,0x06,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x0F,0xE0,0x00,0x1F,0x86,0x00,0x20,0x30,0x00,0x00,0x00,
        0x00,0x00,0x00,0x07,0xC0,0x3F,0xE0,0x00,0x0F,0x86,0x00,0x20,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xC0,0x7F,0xE0,0x00,0x0F,0xC6,0x00,0x40,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xE0,0x00,0x0F,0xF7,0x00,0xC0,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xE0,0x00,0x0F,0xFF,0x00,0x80,0x60,0x00,0x00,0x00,
        0x00,0x00,0x00,0x3F,0xFF,0xFF,0xF0,0x00,0x0F,0xFF,0x01,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x39,0xFF,0x80,0xF0,0x00,0x0F,0x9F,0x83,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xFE,0x00,0x78,0x00,0x0F,0x0F,0xC6,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xFE,0x00,0x3C,0x00,0x0E,0x07,0xFC,0x00,0xC0,0x00,0x00,0x00,
        0x00,0x00,0x00,0xE0,0x7C,0x00,0x1E,0x00,0x1E,0x03,0xFC,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x78,0x00,0x1F,0x00,0x3C,0x03,0xFC,0x03,0x80,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x78,0x00,0x0F,0xE0,0xFC,0x03,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x78,0x00,0x0F,0xFF,0xFC,0x01,0xFF,0xFC,0x00,0x00,0x00,0x00,
        0x00,0x00,0x01,0xC0,0x78,0x00,0x0F,0xFF,0xFC,0x01,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x78,0x00,0x0F,0xFF,0xFC,0x03,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x78,0x00,0x0F,0xFF,0xFC,0x03,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x78,0x00,0x0F,0xE0,0xFC,0x03,0xFE,0x07,0x00,0x00,0x00,0x00,
        0x00,0x00,0x00,0xC0,0x78,0x00,0x0F,0x00,0x3C,0x03,0xFC,0x03,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x7C,0x00,0x1E,0x00,0x1E,0x07,0xF8,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x7E,0x00,0x3C,0x00,0x0E,0x07,0xFC,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xFE,0x00,0x38,0x00,0x0F,0x0F,0xC6,0x00,0xE0,0x00,0x00,0x00,
        0x00,0x00,0x00,0x38,0xFF,0x80,0xF8,0x00,0x07,0x9F,0x83,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xE3,0xF0,0x00,0x07,0xFF,0x01,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xF0,0x00,0x07,0xF7,0x00,0x80,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xE0,0xFF,0xF0,0x00,0x07,0xE7,0x00,0xC0,0x30,0x00,0x00,0x00,
        0x00,0x00,0x00,0x07,0xC0,0x3F,0xF0,0x00,0x0F,0x86,0x00,0x40,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x0F,0xF0,0x00,0x0F,0x86,0x00,0x20,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x07,0xF0,0x00,0x1F,0x0E,0x00,0x20,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x03,0xF0,0x00,0x3E,0x0E,0x00,0x10,0x30,0x00,0x00,0x00,
        0x00,0x00,0x00,0x01,0xC0,0x01,0xF8,0x00,0x7C,0x4F,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0xFC,0x00,0xF8,0x1F,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xFF,0x03,0xF8,0x1D,0x80,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x7F,0xFF,0xF0,0x39,0xC0,0x00,0x30,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x70,0x00,0x7F,0xFF,0xE0,0xF1,0xC0,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x7F,0xFF,0xE1,0xE0,0x70,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x7F,0x00,0xFF,0xC0,0x70,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x01,0xF0,0x00,0xFF,0x00,0x3C,0x00,0x60,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x07,0xFF,0xC0,0x01,0xF8,0x00,0x0E,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0x80,0x03,0xC0,0x00,0x07,0x90,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xE0,0x07,0x80,0x00,0x01,0xF7,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x1F,0x00,0x00,0x00,0x7F,0xC0,0x00,0x00,0x00,
        0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFC,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00]

buf = framebuf.FrameBuffer(bytearray(data), 128, 64, framebuf.MONO_HLSB)
oled.blit(buf, 0, 0)
oled.show()

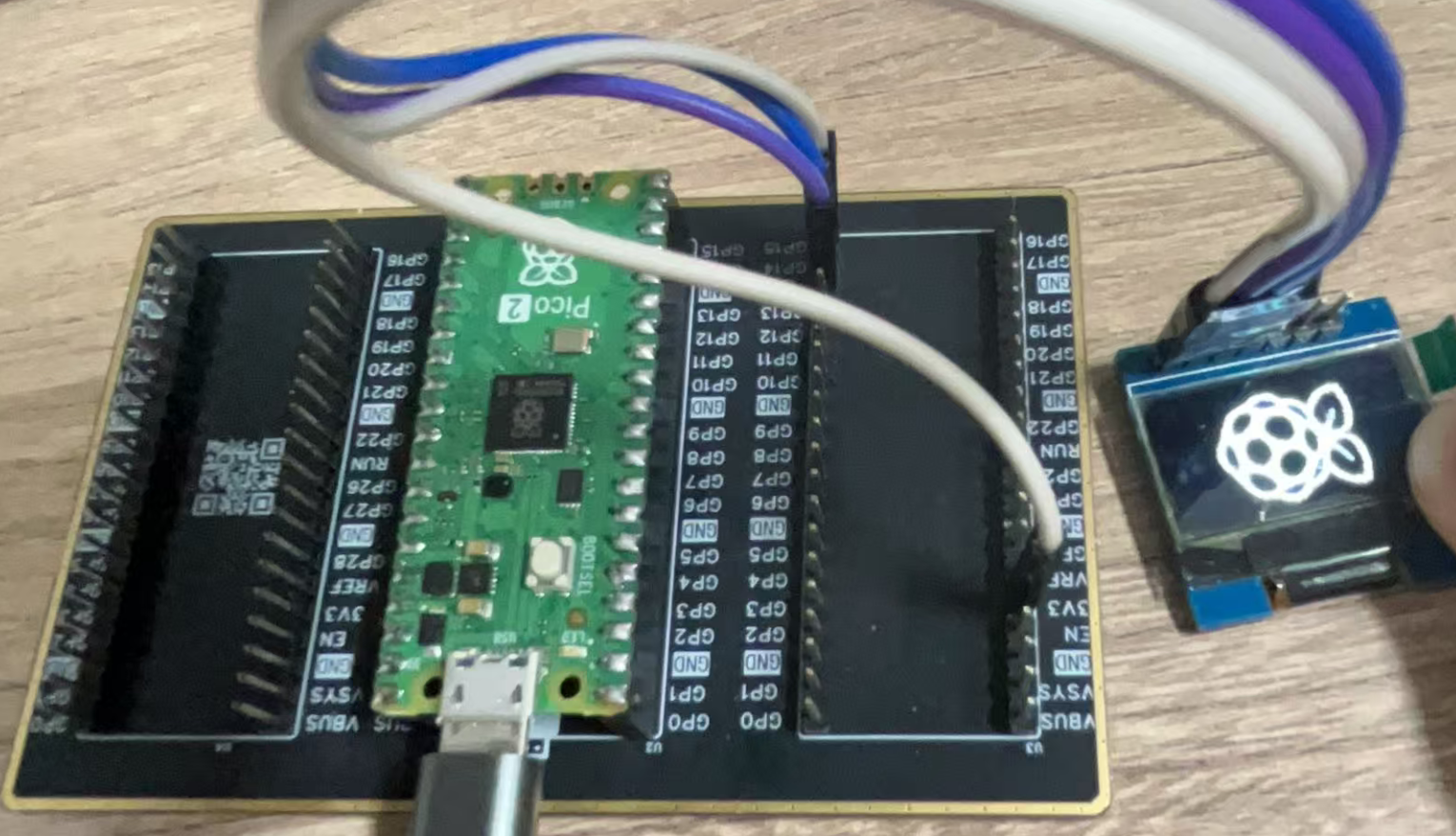

显示结果

显示英文

import machine
import ssd1306

i2c = machine.I2C(1, sda=machine.Pin(14), scl=machine.Pin(15), freq=400_000)


# using default address 0x3C
# i2c = I2C(sda=Pin(14), scl=Pin(15))
display = ssd1306.SSD1306_I2C(128, 64, i2c)

display.fill(0)
display.fill_rect(0, 0, 32, 32, 1)
display.fill_rect(2, 2, 28, 28, 0)
display.vline(9, 8, 22, 1)
display.vline(16, 2, 22, 1)
display.vline(23, 8, 22, 1)
display.fill_rect(26, 24, 2, 4, 1)
display.text('MicroPython', 40, 0, 1)
display.text('SSD1306', 40, 12, 1)
display.text('OLED 128x64', 40, 24, 1)
display.show()

显示结果：

代码解析：

创建一个I2C对象，使用I2C总线1（I2C(1)）。
sda=machine.Pin(14)：设置SDA（数据线）为GPIO 14。
scl=machine.Pin(15)：设置SCL（时钟线）为GPIO 15。
freq=400_000：设置I2C通信频率为400 kHz。

fill_rect(x, y, width, height, color)：绘制一个填充矩形。
x=0, y=0：矩形左上角坐标为(0, 0)。
width=32, height=32：矩形大小为32x32像素。
color=1：白色（1表示白色，0表示黑色）。

text：要显示的字符串。
x, y：文本起始坐标。
color：文本颜色（1为白色）。

显示矩形：

oled.text("WELCOME!", 0, 0)
oled.text("This is a text", 0, 16)
oled.text("GOOD BYE", 0, 32)

while True:
      oled.rect(20, 20, 64, 32, 1)
      oled.show()
      sleep(2)
      oled.fill(0)

      oled.fill_rect(20, 20, 64, 32, 1)
      oled.show()
      sleep(2)
      oled.fill(0)

      import framebuf
fbuf = framebuf.FrameBuffer(bytearray(8 * 8 * 1), 8, 8, framebuf.MONO_VLSB)
fbuf.line(0, 0, 7, 7, 1)
oled.blit(fbuf, 10, 10, 0)           # draw on top at x=10, y=10, key=0
oled.show()

代码解析：

第一行 "WELCOME!" 显示在坐标 (0, 0)
第二行 "This is a text" 显示在 (0, 16)（向下偏移16像素）
第三行 "GOOD BYE" 显示在 (0, 32)

无限循环中交替绘制两种矩形：
空心矩形：左上角在 (20,20)，宽64像素，高32像素，白色边框。
实心矩形：位置和大小与空心矩形相同，但填充为白色。
